FILTEC

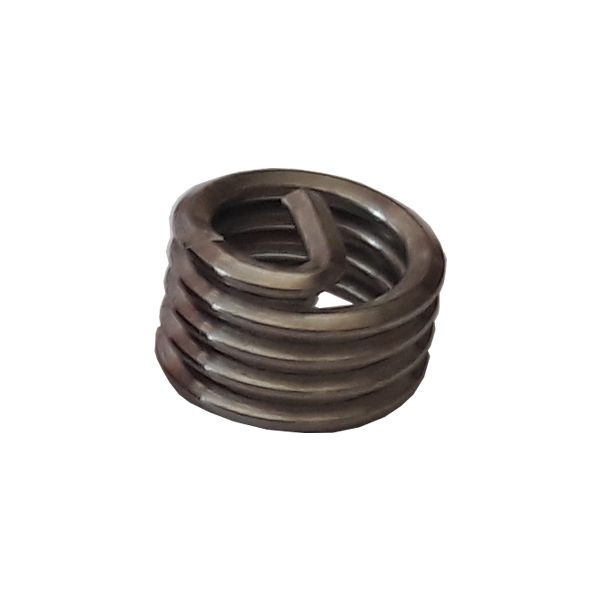

Najnowsza generacja wkładek gwintowych. Wykorzystywane do naprawy zepsutych lub zerwanych gwintów. Stosowane do tej pory narzędzia nie są konieczne, chociaż montaż wkładek FILTEC przy ich pomocy jest również możliwy.
| Gwint x Skok | x d | Głębokość gwintu | Artykuł | Ilość zwojów przed montażem | Średnica przed montażem [min-max] | Wiertło | Tolerancje [min-max] | Gwintowanie B | Gwintowanie C |
|---|---|---|---|---|---|---|---|---|---|
| M2 x0,40 | 1,0 d | 2,00 | FILTEC 2x40 AC2 | 2,90 | 2,60 – 2,75 | 2,10 | 2,090 +0,090 | 2,520 | 2,260 +0,053 |
| M2 x0,40 | 1,5 d | 3,00 | FILTEC 2x40 AC3 | 4,90 | 2,60 – 2,75 | 2,10 | 2,090 +0,090 | 2,520 | 2,260 +0,053 |
| M2 x0,40 | 2,0 d | 4,00 | FILTEC 2x40 AC4 | 6,90 | 2,60 – 2,75 | 2,10 | 2,090 +0,090 | 2,520 | 2,260 +0,053 |
| M2 x0,40 | 2,5 d | 5,00 | FILTEC 2x40 AC5 | 8,90 | 2,60 – 2,75 | 2,10 | 2,090 +0,090 | 2,520 | 2,260 +0,053 |
| M2 x0,40 | 3,0 d | 6,00 | FILTEC 2x40 AC6 | 10,90 | 2,60 – 2,75 | 2,10 | 2,090 +0,090 | 2,520 | 2,260 +0,053 |
| M2,5 x0,45 | 1,0 d | 2,50 | FILTEC 2,5x45 AC2,5 | 3,60 | 3,15 – 3,30 | 2,60 | 2,597 +0,100 | 3,084 | 2,792 +0,055 |
| M2,5 x0,45 | 1,25 d | 3,12 | FILTEC 2,5x45 AC3,12 | 4,75 | 3,15 – 3,30 | 2,60 | 2,597 +0,100 | 3,084 | 2,792 +0,055 |
| M2,5 x0,45 | 1,5 d | 3,75 | FILTEC 2,5x45 AC3,75 | 6,00 | 3,15 – 3,30 | 2,60 | 2,597 +0,100 | 3,084 | 2,792 +0,055 |
| M2,5 x0,45 | 2,0 d | 5,00 | FILTEC 2,5x45 AC5 | 8,20 | 3,15 – 3,30 | 2,60 | 2,597 +0,100 | 3,084 | 2,792 +0,055 |
| M2,5 x0,45 | 2,5 d | 6,25 | FILTEC 2,5x45 AC6,25 | 10,60 | 3,15 – 3,30 | 2,60 | 2,597 +0,100 | 3,084 | 2,792 +0,055 |
| M2,5 x0,45 | 3,0 d | 7,50 | FILTEC 2,5x45 AC7,5 | 13,10 | 3,15 – 3,30 | 2,60 | 2,597 +0,100 | 3,084 | 2,792 +0,055 |
| M3 x0,50 | 1,0 d | 3,00 | FILTEC 3x50 AC3 | 3,95 | 3,70 – 3,90 | 3,20 | 3,108 +0,112 | 3,650 | 3,325 +0,059 |
| M3 x0,50 | 1,25 d | 3,75 | FILTEC 3x50 AC3,75 | 4,95 | 3,70 – 3,90 | 3,20 | 3,108 +0,112 | 3,650 | 3,325 +0,059 |
| M3 x0,50 | 1,5 d | 4,50 | FILTEC 3x50 AC4,5 | 6,35 | 3,70 – 3,90 | 3,20 | 3,108 +0,112 | 3,650 | 3,325 +0,059 |
| M3 x0,50 | 2,0 d | 6,00 | FILTEC 3x50 AC6 | 8,80 | 3,70 – 3,90 | 3,20 | 3,108 +0,112 | 3,650 | 3,325 +0,059 |
| M3 x0,50 | 2,5 d | 7,50 | FILTEC 3x50 AC7,5 | 11,25 | 3,70 – 3,90 | 3,20 | 3,108 +0,112 | 3,650 | 3,325 +0,059 |
| M3 x0,50 | 3,0 d | 9,00 | FILTEC 3x50 AC9 | 13,65 | 3,70 – 3,90 | 3,20 | 3,108 +0,112 | 3,650 | 3,325 +0,059 |
| M3,5 x0,55 | 1,0 d | 3,50 | FILTEC 3,5x55 AC3,5 | 3,90 | 4,35 – 4,45 | 3,70 | 3,630 +0,125 | 4,280 | 3,890 +0,069 |
| M3,5 x0,55 | 1,5 d | 5,25 | FILTEC 3,5x55 AC5,25 | 6,60 | 4,35 – 4,45 | 3,70 | 3,630 +0,125 | 4,280 | 3,890 +0,069 |
| M3,5 x0,55 | 2,0 d | 7,00 | FILTEC 3,5x55 AC7 | 9,15 | 4,35 – 4,45 | 3,70 | 3,630 +0,125 | 4,280 | 3,890 +0,069 |
| M3,5 x0,55 | 2,5 d | 8,75 | FILTEC 3,5x55 AC8,75 | 11,80 | 4,35 – 4,45 | 3,70 | 3,630 +0,125 | 4,280 | 3,890 +0,069 |
| M3,5 x0,55 | 3,0 d | 10,50 | FILTEC 3,5x55 AC10,5 | 14,00 | 4,35 – 4,45 | 3,70 | 3,630 +0,125 | 4,280 | 3,890 +0,069 |
| M4 x0,70 | 1,0 d | 4,00 | FILTEC 4x70 AC4 | 3,80 | 5,00 – 5,15 | 4,20 | 4,152 +0,140 | 4,910 | 4,455 +0,074 |
| M4 x0,70 | 1,25 d | 5,00 | FILTEC 4x70 AC5 | 5,05 | 5,00 – 5,15 | 4,20 | 4,152 +0,140 | 4,910 | 4,455 +0,074 |
| M4 x0,70 | 1,5 d | 6,00 | FILTEC 4x70 AC6 | 6,25 | 5,00 – 5,15 | 4,20 | 4,152 +0,140 | 4,910 | 4,455 +0,074 |
| M4 x0,70 | 2,0 d | 8,00 | FILTEC 4x70 AC8 | 8,65 | 5,00 – 5,15 | 4,20 | 4,152 +0,140 | 4,910 | 4,455 +0,074 |
| M4 x0,70 | 2,5 d | 10,00 | FILTEC 4x70 AC10 | 11,20 | 5,00 – 5,15 | 4,20 | 4,152 +0,140 | 4,910 | 4,455 +0,074 |
| M4 x0,70 | 3,0 d | 12,00 | FILTEC 4x70 AC12 | 13,60 | 5,00 – 5,15 | 4,20 | 4,152 +0,140 | 4,910 | 4,455 +0,074 |
| M5 x0,80 | 1,0 d | 5,00 | FILTEC 5x80 AC5 | 4,45 | 6,10 – 6,30 | 5,20 | 5,174 +0,160 | 6,040 | 5,520 +0,077 |
| M5 x0,80 | 1,25 d | 6,25 | FILTEC 5x80 AC6,25 | 5,70 | 6,10 – 6,30 | 5,20 | 5,174 +0,160 | 6,040 | 5,520 +0,077 |
| M5 x0,80 | 1,5 d | 7,50 | FILTEC 5x80 AC7,5 | 7,15 | 6,10 – 6,30 | 5,20 | 5,174 +0,160 | 6,040 | 5,520 +0,077 |
| M5 x0,80 | 2,0 d | 10,00 | FILTEC 5x80 AC10 | 10,10 | 6,10 – 6,30 | 5,20 | 5,174 +0,160 | 6,040 | 5,520 +0,077 |
| M5 x0,80 | 2,5 d | 12,50 | FILTEC 5x80 AC12,5 | 12,80 | 6,10 – 6,30 | 5,20 | 5,174 +0,160 | 6,040 | 5,520 +0,077 |
| M5 x0,80 | 3,0 d | 15,00 | FILTEC 5x80 AC15 | 15,40 | 6,10 – 6,30 | 5,20 | 5,174 +0,160 | 6,040 | 5,520 +0,077 |
| M6 x1,00 | 1,0 d | 6,00 | FILTEC 6x100 AC6 | 4,30 | 7,40 – 7,65 | 6,30 | 6,217 +0,190 | 7,300 | 6,650 +0,092 |
| M6 x1,00 | 1,25 d | 7,50 | FILTEC 6x100 AC7,5 | 5,55 | 7,40 – 7,65 | 6,30 | 6,217 +0,190 | 7,300 | 6,650 +0,092 |
| M6 x1,00 | 1,5 d | 9,00 | FILTEC 6x100 AC9 | 7,10 | 7,40 – 7,65 | 6,30 | 6,217 +0,190 | 7,300 | 6,650 +0,092 |
| M6 x1,00 | 2,0 d | 12,00 | FILTEC 6x100 AC12 | 9,85 | 7,40 – 7,65 | 6,30 | 6,217 +0,190 | 7,300 | 6,650 +0,092 |
| M6 x1,00 | 2,5 d | 15,00 | FILTEC 6x100 AC15 | 12,60 | 7,40 – 7,65 | 6,30 | 6,217 +0,190 | 7,300 | 6,650 +0,092 |
| M6 x1,00 | 3,0 d | 18,00 | FILTEC 6x100 AC18 | 15,00 | 7,40 – 7,65 | 6,30 | 6,217 +0,190 | 7,300 | 6,650 +0,092 |
| M7 x1,00 | 1,0 d | 7,00 | FILTEC 7x100 AC7 | 5,45 | 8,40 – 8,65 | 7,30 | 7,217 +0,190 | 8,300 | 7,650 +0,092 |
| M7 x1,00 | 1,5 d | 10,50 | FILTEC 7x100 AC10,5 | 8,45 | 8,40 – 8,65 | 7,30 | 7,217 +0,190 | 8,300 | 7,650 +0,092 |
| M7 x1,00 | 2,0 d | 14,00 | FILTEC 7x100 AC14 | 11,40 | 8,40 – 8,65 | 7,30 | 7,217 +0,190 | 8,300 | 7,650 +0,092 |
| M7 x1,00 | 2,5 d | 17,50 | FILTEC 7x100 AC17,5 | 14,75 | 8,40 – 8,65 | 7,30 | 7,217 +0,190 | 8,300 | 7,650 +0,092 |
| M7 x1,00 | 3,0 d | 21,00 | FILTEC 7x100 AC21 | 17,90 | 8,40 – 8,65 | 7,30 | 7,217 +0,190 | 8,300 | 7,650 +0,092 |
| M8 x1,00 | 1,0 d | 8,00 | FILTEC 8x100 AC8 | 6,30 | 9,45 – 9,75 | 8,30 | 8,217 +0,190 | 9,300 | 8,650 +0,092 |
| M8 x1,00 | 1,5 d | 12,00 | FILTEC 8x100 AC12 | 9,80 | 9,45 – 9,75 | 8,30 | 8,217 +0,190 | 9,300 | 8,650 +0,092 |
| M8 x1,00 | 2,0 d | 16,00 | FILTEC 8x100 AC16 | 13,30 | 9,45 – 9,75 | 8,30 | 8,217 +0,190 | 9,300 | 8,650 +0,092 |
| M8 x1,00 | 2,5 d | 20,00 | FILTEC 8x100 AC20 | 17,00 | 9,45 – 9,75 | 8,30 | 8,217 +0,190 | 9,300 | 8,650 +0,092 |
| M8 x1,00 | 3,0 d | 24,00 | FILTEC 8x100 AC24 | 20,50 | 9,45 – 9,75 | 8,30 | 8,217 +0,190 | 9,300 | 8,650 +0,092 |
| M8 x1,25 | 1,0 d | 8,00 | FILTEC 8x125 AC8 | 4,80 | 9,70 – 9,90 | 8,40 | 8,217 +0,212 | 9,624 | 8,812 +0,099 |
| M8 x1,25 | 1,25 d | 10,00 | FILTEC 8x125 AC10 | 6,10 | 9,70 – 9,90 | 8,40 | 8,217 +0,212 | 9,624 | 8,812 +0,099 |
| M8 x1,25 | 1,5 d | 12,00 | FILTEC 8x125 AC12 | 7,50 | 9,70 – 9,90 | 8,40 | 8,217 +0,212 | 9,624 | 8,812 +0,099 |
| M8 x1,25 | 2,0 d | 16,00 | FILTEC 8x125 AC16 | 10,75 | 9,70 – 9,90 | 8,40 | 8,217 +0,212 | 9,624 | 8,812 +0,099 |
| M8 x1,25 | 2,5 d | 20,00 | FILTEC 8x125 AC20 | 13,70 | 9,70 – 9,90 | 8,40 | 8,217 +0,212 | 9,624 | 8,812 +0,099 |
| M8 x1,25 | 3,0 d | 24,00 | FILTEC 8x125 AC24 | 16,65 | 9,70 – 9,90 | 8,40 | 8,217 +0,212 | 9,624 | 8,812 +0,099 |
| M9 x1,25 | 1,0 d | 9,00 | FILTEC 9x125 AC9 | 5,40 | 10,70 – 10,90 | 9,40 | 9,217 +0,212 | 10,624 | 9,812 +0,099 |
| M9 x1,25 | 1,5 d | 13,50 | FILTEC 9x125 AC13,5 | 8,70 | 10,70 – 10,90 | 9,40 | 9,217 +0,212 | 10,624 | 9,812 +0,099 |
| M9 x1,25 | 2,0 d | 18,00 | FILTEC 9x125 AC18 | 12,10 | 10,70 – 10,90 | 9,40 | 9,217 +0,212 | 10,624 | 9,812 +0,099 |
| M9 x1,25 | 2,5 d | 22,50 | FILTEC 9x125 AC22,5 | 15,50 | 10,70 – 10,90 | 9,40 | 9,217 +0,212 | 10,624 | 9,812 +0,099 |
| M9 x1,25 | 3,0 d | 27,00 | FILTEC 9x125 AC27 | 18,35 | 10,70 – 10,90 | 9,40 | 9,217 +0,212 | 10,624 | 9,812 +0,099 |
| M10 x1,00 | 1,0 d | 10,00 | FILTEC 10x100 AC10 | 7,90 | 11,60 – 11,90 | 10,30 | 10,217 +0,190 | 11,300 | 10,650 +0,092 |
| M10 x1,00 | 1,5 d | 15,00 | FILTEC 10x100 AC15 | 12,60 | 11,60 – 11,90 | 10,30 | 10,217 +0,190 | 11,300 | 10,650 +0,092 |
| M10 x1,00 | 2,0 d | 20,00 | FILTEC 10x100 AC20 | 17,00 | 11,60 – 11,90 | 10,30 | 10,217 +0,190 | 11,300 | 10,650 +0,092 |
| M10 x1,00 | 2,5 d | 25,00 | FILTEC 10x100 AC25 | 21,55 | 11,60 – 11,90 | 10,30 | 10,217 +0,190 | 11,300 | 10,650 +0,092 |
| M10 x1,00 | 3,0 d | 30,00 | FILTEC 10x100 AC30 | 26,05 | 11,60 – 11,90 | 10,30 | 10,217 +0,190 | 11,300 | 10,650 +0,092 |
| M10 x1,25 | 1,0 d | 10,00 | FILTEC 10x125 AC10 | 6,15 | 11,75 – 12,00 | 10,40 | 10,271 +0,212 | 11,624 | 10,812 +0,099 |
| M10 x1,25 | 1,5 d | 15,00 | FILTEC 10x125 AC15 | 10,00 | 11,75 – 12,00 | 10,40 | 10,271 +0,212 | 11,624 | 10,812 +0,099 |
| M10 x1,25 | 2,0 d | 20,00 | FILTEC 10x125 AC20 | 13,50 | 11,75 – 12,00 | 10,40 | 10,271 +0,212 | 11,624 | 10,812 +0,099 |
| M10 x1,25 | 2,5 d | 25,00 | FILTEC 10x125 AC25 | 17,00 | 11,75 – 12,00 | 10,40 | 10,271 +0,212 | 11,624 | 10,812 +0,099 |
| M10 x1,25 | 3,0 d | 30,00 | FILTEC 10x125 AC30 | 20,70 | 11,75 – 12,00 | 10,40 | 10,271 +0,212 | 11,624 | 10,812 +0,099 |
| M10 x1,50 | 1,0 d | 10,00 | FILTEC 10x150 AC10 | 5,00 | 12,05 – 12,35 | 10,50 | 10,324 +0,236 | 11,948 | 10,974 +0,115 |
| M10 x1,50 | 1,25 d | 12,50 | FILTEC 10x150 AC12,5 | 6,50 | 12,05 – 12,35 | 10,50 | 10,324 +0,236 | 11,948 | 10,974 +0,115 |
| M10 x1,50 | 1,5 d | 15,00 | FILTEC 10x150 AC15 | 8,10 | 12,05 – 12,35 | 10,50 | 10,324 +0,236 | 11,948 | 10,974 +0,115 |
| M10 x1,50 | 2,0 d | 20,00 | FILTEC 10x150 AC20 | 11,25 | 12,05 – 12,35 | 10,50 | 10,324 +0,236 | 11,948 | 10,974 +0,115 |
| M10 x1,50 | 2,5 d | 25,00 | FILTEC 10x150 AC25 | 14,25 | 12,05 – 12,35 | 10,50 | 10,324 +0,236 | 11,948 | 10,974 +0,115 |
| M10 x1,50 | 3,0 d | 30,00 | FILTEC 10x150 AC30 | 17,25 | 12,05 – 12,35 | 10,50 | 10,324 +0,236 | 11,948 | 10,974 +0,115 |
| M11 x1,50 | 1,0 d | 11,00 | FILTEC 11x150 AC11 | 5,60 | 13,05 – 13,35 | 11,50 | 11,324 +0,236 | 12,948 | 11,974 +0,115 |
| M11 x1,50 | 1,5 d | 16,50 | FILTEC 11x150 AC16,5 | 9,00 | 13,05 – 13,35 | 11,50 | 11,324 +0,236 | 12,948 | 11,974 +0,115 |
| M11 x1,50 | 2,0 d | 22,00 | FILTEC 11x150 AC22 | 12,35 | 13,05 – 13,35 | 11,50 | 11,324 +0,236 | 12,948 | 11,974 +0,115 |
| M11 x1,50 | 2,5 d | 27,50 | FILTEC 11x150 AC27,5 | 15,75 | 13,05 – 13,35 | 11,50 | 11,324 +0,236 | 12,948 | 11,974 +0,115 |
| M11 x1,50 | 3,0 d | 33,00 | FILTEC 11x150 AC33 | 18,95 | 13,05 – 13,35 | 11,50 | 11,324 +0,236 | 12,948 | 11,974 +0,115 |
| M12 x1,00 | 1,0 d | 12,00 | FILTEC 12x100 AC12 | 9,75 | 13,70 – 14,10 | 12,30 | 12,217 +0,190 | 13,300 | 12,650 +0,100 |
| M12 x1,00 | 1,5 d | 18,00 | FILTEC 12x100 AC18 | 15,20 | 13,70 – 14,10 | 12,30 | 12,217 +0,190 | 13,300 | 12,650 +0,100 |
| M12 x1,00 | 2,0 d | 24,00 | FILTEC 12x100 AC24 | 20,50 | 13,70 – 14,10 | 12,30 | 12,217 +0,190 | 13,300 | 12,650 +0,100 |
| M12 x1,00 | 2,5 d | 30,00 | FILTEC 12x100 AC30 | 25,95 | 13,70 – 14,10 | 12,30 | 12,217 +0,190 | 13,300 | 12,650 +0,100 |
| M12 x1,00 | 3,0 d | 36,00 | FILTEC 12x100 AC36 | 31,30 | 13,70 – 14,10 | 12,30 | 12,217 +0,190 | 13,300 | 12,650 +0,100 |
| M12 x1,25 | 1,0 d | 12,00 | FILTEC 12x125 AC12 | 7,75 | 13,75 – 14,05 | 12,40 | 12,271 +0,212 | 13,624 | 12,812 +0,114 |
| M12 x1,25 | 1,5 d | 18,00 | FILTEC 12x125 AC18 | 12,15 | 13,75 – 14,05 | 12,40 | 12,271 +0,212 | 13,624 | 12,812 +0,114 |
| M12 x1,25 | 2,0 d | 24,00 | FILTEC 12x125 AC24 | 16,65 | 13,75 – 14,05 | 12,40 | 12,271 +0,212 | 13,624 | 12,812 +0,114 |
| M12 x1,25 | 2,5 d | 30,00 | FILTEC 12x125 AC30 | 21,15 | 13,75 – 14,05 | 12,40 | 12,271 +0,212 | 13,624 | 12,812 +0,114 |
| M12 x1,25 | 3,0 d | 36,00 | FILTEC 12x125 AC36 | 25,65 | 13,75 – 14,05 | 12,40 | 12,271 +0,212 | 13,624 | 12,812 +0,114 |
| M12 x1,50 | 1,0 d | 12,00 | FILTEC 12x150 AC12 | 6,30 | 14,10 – 14,40 | 12,50 | 12,324 +0,236 | 13,948 | 12,974 +0,125 |
| M12 x1,50 | 1,5 d | 18,00 | FILTEC 12x150 AC18 | 10,00 | 14,10 – 14,40 | 12,50 | 12,324 +0,236 | 13,948 | 12,974 +0,125 |
| M12 x1,50 | 2,0 d | 24,00 | FILTEC 12x150 AC24 | 13,80 | 14,10 – 14,40 | 12,50 | 12,324 +0,236 | 13,948 | 12,974 +0,125 |
| M12 x1,50 | 2,5 d | 30,00 | FILTEC 12x150 AC30 | 16,00 | 14,10 – 14,40 | 12,50 | 12,324 +0,236 | 13,948 | 12,974 +0,125 |
| M12 x1,50 | 3,0 d | 36,00 | FILTEC 12x150 AC36 | 21,25 | 14,10 – 14,40 | 12,50 | 12,324 +0,236 | 13,948 | 12,974 +0,125 |
| M12 x1,75 | 0,75 d | 9,00 | FILTEC 12x175 AC9 | 3,70 | 14,35 – 14,60 | 12,50 | 12,379 +0,265 | 14,274 | 13,137 +0,134 |
| M12 x1,75 | 1,0 d | 12,00 | FILTEC 12x175 AC12 | 5,20 | 14,35 – 14,60 | 12,50 | 12,379 +0,265 | 14,274 | 13,137 +0,134 |
| M12 x1,75 | 1,25 d | 15,00 | FILTEC 12x175 AC15 | 6,90 | 14,35 – 14,60 | 12,50 | 12,379 +0,265 | 14,274 | 13,137 +0,134 |
| M12 x1,75 | 1,5 d | 18,00 | FILTEC 12x175 AC18 | 8,40 | 14,35 – 14,60 | 12,50 | 12,379 +0,265 | 14,274 | 13,137 +0,134 |
| M12 x1,75 | 2,0 d | 24,00 | FILTEC 12x175 AC24 | 11,75 | 14,35 – 14,60 | 12,50 | 12,379 +0,265 | 14,274 | 13,137 +0,134 |
| M12 x1,75 | 2,5 d | 30,00 | FILTEC 12x175 AC30 | 14,75 | 14,35 – 14,60 | 12,50 | 12,379 +0,265 | 14,274 | 13,137 +0,134 |
| M12 x1,75 | 3,0 d | 36,00 | FILTEC 12x175 AC36 | 18,05 | 14,35 – 14,60 | 12,50 | 12,379 +0,265 | 14,274 | 13,137 +0,134 |
| M14 x1,50 | 0,75 d | 10,50 | FILTEC 14x150 AC10,5 | 5,40 | 16,25 – 16,65 | 14,50 | 14,324 +0,236 | 15,948 | 14,974 +0,125 |
| M14 x1,50 | 1,0 d | 14,00 | FILTEC 14x150 AC14 | 7,50 | 16,25 – 16,65 | 14,50 | 14,324 +0,236 | 15,948 | 14,974 +0,125 |
| M14 x1,50 | 1,5 d | 21,00 | FILTEC 14x150 AC21 | 11,85 | 16,25 – 16,65 | 14,50 | 14,324 +0,236 | 15,948 | 14,974 +0,125 |
| M14 x1,50 | 2,0 d | 28,00 | FILTEC 14x150 AC28 | 16,15 | 16,25 – 16,65 | 14,50 | 14,324 +0,236 | 15,948 | 14,974 +0,125 |
| M14 x1,50 | 2,5 d | 35,00 | FILTEC 14x150 AC35 | 20,10 | 16,25 – 16,65 | 14,50 | 14,324 +0,236 | 15,948 | 14,974 +0,125 |
| M14 x1,50 | 3,0 d | 42,00 | FILTEC 14x150 AC42 | 24,55 | 16,25 – 16,65 | 14,50 | 14,324 +0,236 | 15,948 | 14,974 +0,125 |
| M14 x2,00 | 0,75 d | 10,50 | FILTEC 14x200 AC10,5 | 4,00 | 16,80 – 17,15 | 14,50 | 14,433 +0,300 | 16,598 | 15,299 +0,145 |
| M14 x2,00 | 1,0 d | 14,00 | FILTEC 14x200 AC14 | 5,60 | 16,80 – 17,15 | 14,50 | 14,433 +0,300 | 16,598 | 15,299 +0,145 |
| M14 x2,00 | 1,25 d | 17,50 | FILTEC 14x200 AC17,5 | 7,20 | 16,80 – 17,15 | 14,50 | 14,433 +0,300 | 16,598 | 15,299 +0,145 |
| M14 x2,00 | 1,5 d | 21,00 | FILTEC 14x200 AC21 | 8,80 | 16,80 – 17,15 | 14,50 | 14,433 +0,300 | 16,598 | 15,299 +0,145 |
| M14 x2,00 | 2,0 d | 28,00 | FILTEC 14x200 AC28 | 12,00 | 16,80 – 17,15 | 14,50 | 14,433 +0,300 | 16,598 | 15,299 +0,145 |
| M14 x2,00 | 2,5 d | 35,00 | FILTEC 14x200 AC35 | 15,20 | 16,80 – 17,15 | 14,50 | 14,433 +0,300 | 16,598 | 15,299 +0,145 |
| M14 x2,00 | 3,0 d | 42,00 | FILTEC 14x200 AC42 | 18,40 | 16,80 – 17,15 | 14,50 | 14,433 +0,300 | 16,598 | 15,299 +0,145 |
| M16 x1,50 | 0,75 d | 12,00 | FILTEC 16x150 AC12 | 6,50 | 18,40 – 18,80 | 16,50 | 16,324 +0,236 | 17,948 | 16,974 +0,125 |
| M16 x1,50 | 1,0 d | 16,00 | FILTEC 16x150 AC16 | 9,00 | 18,40 – 18,80 | 16,50 | 16,324 +0,236 | 17,948 | 16,974 +0,125 |
| M16 x1,50 | 1,25 d | 20,00 | FILTEC 16x150 AC20 | 11,35 | 18,40 – 18,80 | 16,50 | 16,324 +0,236 | 17,948 | 16,974 +0,125 |
| M16 x1,50 | 1,5 d | 24,00 | FILTEC 16x150 AC24 | 13,85 | 18,40 – 18,80 | 16,50 | 16,324 +0,236 | 17,948 | 16,974 +0,125 |
| M16 x1,50 | 2,0 d | 32,00 | FILTEC 16x150 AC32 | 18,70 | 18,40 – 18,80 | 16,50 | 16,324 +0,236 | 17,948 | 16,974 +0,125 |
| M16 x1,50 | 2,5 d | 40,00 | FILTEC 16x150 AC40 | 23,65 | 18,40 – 18,80 | 16,50 | 16,324 +0,236 | 17,948 | 16,974 +0,125 |
| M16 x1,50 | 3,0 d | 48,00 | FILTEC 16x150 AC48 | 28,50 | 18,40 – 18,80 | 16,50 | 16,324 +0,236 | 17,948 | 16,974 +0,125 |
| M16 x2,00 | 0,75 d | 12,00 | FILTEC 16x200 AC12 | 4,65 | 18,80 – 19,10 | 16,50 | 16,433 +0,300 | 18,598 | 17,299 +0,145 |
| M16 x2,00 | 1,0 d | 16,00 | FILTEC 16x200 AC16 | 6,55 | 18,80 – 19,10 | 16,50 | 16,433 +0,300 | 18,598 | 17,299 +0,145 |
| M16 x2,00 | 1,25 d | 20,00 | FILTEC 16x200 AC20 | 8,40 | 18,80 – 19,10 | 16,50 | 16,433 +0,300 | 18,598 | 17,299 +0,145 |
| M16 x2,00 | 1,5 d | 24,00 | FILTEC 16x200 AC24 | 10,20 | 18,80 – 19,10 | 16,50 | 16,433 +0,300 | 18,598 | 17,299 +0,145 |
| M16 x2,00 | 2,0 d | 32,00 | FILTEC 16x200 AC32 | 13,95 | 18,80 – 19,10 | 16,50 | 16,433 +0,300 | 18,598 | 17,299 +0,145 |
| M16 x2,00 | 2,5 d | 40,00 | FILTEC 16x200 AC40 | 17,70 | 18,80 – 19,10 | 16,50 | 16,433 +0,300 | 18,598 | 17,299 +0,145 |
| M16 x2,00 | 3,0 d | 48,00 | FILTEC 16x200 AC48 | 21,40 | 18,80 – 19,10 | 16,50 | 16,433 +0,300 | 18,598 | 17,299 +0,145 |
| M18 x1,50 | 0,75 d | 13,50 | FILTEC 18x150 AC13,5 | 7,30 | 20,60 – 21,00 | 18,50 | 18,324 +0,236 | 19,948 | 18,974 +0,125 |
| M18 x1,50 | 1,0 d | 18,00 | FILTEC 18x150 AC18 | 9,90 | 20,60 – 21,00 | 18,50 | 18,324 +0,236 | 19,948 | 18,974 +0,125 |
| M18 x1,50 | 1,25 d | 22,50 | FILTEC 18x150 AC22,5 | 12,70 | 20,60 – 21,00 | 18,50 | 18,324 +0,236 | 19,948 | 18,974 +0,125 |
| M18 x1,50 | 1,5 d | 27,00 | FILTEC 18x150 AC27 | 15,55 | 20,60 – 21,00 | 18,50 | 18,324 +0,236 | 19,948 | 18,974 +0,125 |
| M18 x1,50 | 2,0 d | 36,00 | FILTEC 18x150 AC36 | 21,05 | 20,60 – 21,00 | 18,50 | 18,324 +0,236 | 19,948 | 18,974 +0,125 |
| M18 x2,00 | 0,75 d | 13,50 | FILTEC 18x200 AC13,5 | 5,20 | 21,00 – 21,40 | 18,50 | 18,433 +0,300 | 20,598 | 19,299 +0,145 |
| M18 x2,00 | 1,0 d | 18,00 | FILTEC 18x200 AC18 | 7,25 | 21,00 – 21,40 | 18,50 | 18,433 +0,300 | 20,598 | 19,299 +0,145 |
| M18 x2,00 | 1,25 d | 22,50 | FILTEC 18x200 AC22,5 | 9,10 | 21,00 – 21,40 | 18,50 | 18,433 +0,300 | 20,598 | 19,299 +0,145 |
| M18 x2,00 | 1,5 d | 27,00 | FILTEC 18x200 AC27 | 11,45 | 21,00 – 21,40 | 18,50 | 18,433 +0,300 | 20,598 | 19,299 +0,145 |
| M18 x2,00 | 2,0 d | 36,00 | FILTEC 18x200 AC36 | 15,45 | 21,00 – 21,40 | 18,50 | 18,433 +0,300 | 20,598 | 19,299 +0,145 |
| M18 x2,50 | 0,75 d | 13,50 | FILTEC 18x250 AC13,5 | 3,80 | 21,35 – 21,70 | 18,75 | 18,541 +0,355 | 21,248 | 19,624 +0,154 |
| M18 x2,50 | 1,0 d | 18,00 | FILTEC 18x250 AC18 | 5,60 | 21,35 – 21,70 | 18,75 | 18,541 +0,355 | 21,248 | 19,624 +0,154 |
| M18 x2,50 | 1,25 d | 22,50 | FILTEC 18x250 AC22,5 | 6,40 | 21,35 – 21,70 | 18,75 | 18,541 +0,355 | 21,248 | 19,624 +0,154 |
| M18 x2,50 | 1,5 d | 27,00 | FILTEC 18x250 AC27 | 9,05 | 21,35 – 21,70 | 18,75 | 18,541 +0,355 | 21,248 | 19,624 +0,154 |
| M18 x2,50 | 2,0 d | 36,00 | FILTEC 18x250 AC36 | 12,35 | 21,35 – 21,70 | 18,75 | 18,541 +0,355 | 21,248 | 19,624 +0,154 |
| M20 x1,50 | 0,75 d | 15,00 | FILTEC 20x150 AC15 | 3,80 | 23,00 – 23,50 | 20,50 | 20,433 +0,300 | 22,598 | 21,299 +0,145 |
| M20 x1,50 | 1,0 d | 20,00 | FILTEC 20x150 AC20 | 5,60 | 23,00 – 23,50 | 20,50 | 20,433 +0,300 | 22,598 | 21,299 +0,145 |
| M20 x1,50 | 1,25 d | 25,00 | FILTEC 20x150 AC25 | 6,40 | 23,00 – 23,50 | 20,50 | 20,433 +0,300 | 22,598 | 21,299 +0,145 |
| M20 x1,50 | 1,5 d | 30,00 | FILTEC 20x150 AC30 | 9,05 | 23,00 – 23,50 | 20,50 | 20,433 +0,300 | 22,598 | 21,299 +0,145 |
| M20 x1,50 | 2,0 d | 40,00 | FILTEC 20x150 AC40 | 12,35 | 23,00 – 23,50 | 20,50 | 20,433 +0,300 | 22,598 | 21,299 +0,145 |
| M20 x2,00 | 0,75 d | 15,00 | FILTEC 20x200 AC15 | 6,00 | 22,90 – 23,40 | 20,50 | 20,433 +0,300 | 22,598 | 21,299 +0,145 |
| M20 x2,00 | 1,0 d | 20,00 | FILTEC 20x200 AC20 | 8,25 | 22,90 – 23,40 | 20,50 | 20,433 +0,300 | 22,598 | 21,299 +0,145 |
| M20 x2,00 | 1,25 d | 25,00 | FILTEC 20x200 AC25 | 10,45 | 22,90 – 23,40 | 20,50 | 20,433 +0,300 | 22,598 | 21,299 +0,145 |
| M20 x2,00 | 1,5 d | 30,00 | FILTEC 20x200 AC30 | 12,90 | 22,90 – 23,40 | 20,50 | 20,433 +0,300 | 22,598 | 21,299 +0,145 |
| M20 x2,00 | 2,0 d | 40,00 | FILTEC 20x200 AC40 | 17,35 | 22,90 – 23,40 | 20,50 | 20,433 +0,300 | 22,598 | 21,299 +0,145 |
| M20 x2,50 | 0,75 d | 15,00 | FILTEC 20x250 AC15 | 4,55 | 23,35 – 23,75 | 20,75 | 20,541 +0,355 | 23,248 | 21,624 +0,154 |
| M20 x2,50 | 1,0 d | 20,00 | FILTEC 20x250 AC20 | 6,40 | 23,35 – 23,75 | 20,75 | 20,541 +0,355 | 23,248 | 21,624 +0,154 |
| M20 x2,50 | 1,25 d | 25,00 | FILTEC 20x250 AC25 | 8,10 | 23,35 – 23,75 | 20,75 | 20,541 +0,355 | 23,248 | 21,624 +0,154 |
| M20 x2,50 | 1,5 d | 30,00 | FILTEC 20x250 AC30 | 10,15 | 23,35 – 23,75 | 20,75 | 20,541 +0,355 | 23,248 | 21,624 +0,154 |
| M20 x2,50 | 2,0 d | 40,00 | FILTEC 20x250 AC40 | 13,90 | 23,35 – 23,75 | 20,75 | 20,541 +0,355 | 23,248 | 21,624 +0,154 |
| M22 x1,50 | 0,5 d | 11,00 | FILTEC 22x150 AC11 | 5,75 | 25,00 – 25,50 | 22,50 | 22,234 +0,236 | 23,948 | 23,274 +0,125 |
| M22 x1,50 | 0,75 d | 16,50 | FILTEC 22x150 AC16,5 | 9,05 | 25,00 – 25,50 | 22,50 | 22,234 +0,236 | 23,948 | 23,274 +0,125 |
| M22 x1,50 | 1,0 d | 22,00 | FILTEC 22x150 AC22 | 12,30 | 25,00 – 25,50 | 22,50 | 22,234 +0,236 | 23,948 | 23,274 +0,125 |
| M22 x1,50 | 1,25 d | 27,50 | FILTEC 22x150 AC27,5 | 15,55 | 25,00 – 25,50 | 22,50 | 22,234 +0,236 | 23,948 | 23,274 +0,125 |
| M22 x1,50 | 1,5 d | 33,00 | FILTEC 22x150 AC33 | 19,00 | 25,00 – 25,50 | 22,50 | 22,234 +0,236 | 23,948 | 23,274 +0,125 |
| M22 x2,00 | 0,75 d | 16,50 | FILTEC 22x200 AC16,5 | 6,70 | 25,00 – 25,50 | 22,50 | 22,433 +0,300 | 24,598 | 23,299 +0,145 |
| M22 x2,00 | 1,0 d | 22,00 | FILTEC 22x200 AC22 | 9,15 | 25,00 – 25,50 | 22,50 | 22,433 +0,300 | 24,598 | 23,299 +0,145 |
| M22 x2,00 | 1,25 d | 27,50 | FILTEC 22x200 AC27,5 | 11,55 | 25,00 – 25,50 | 22,50 | 22,433 +0,300 | 24,598 | 23,299 +0,145 |
| M22 x2,00 | 1,5 d | 33,00 | FILTEC 22x200 AC33 | 14,30 | 25,00 – 25,50 | 22,50 | 22,433 +0,300 | 24,598 | 23,299 +0,145 |
| M22 x2,00 | 2,0 d | 44,00 | FILTEC 22x200 AC44 | 19,35 | 25,00 – 25,50 | 22,50 | 22,433 +0,300 | 24,598 | 23,299 +0,145 |
| M22 x2,50 | 0,75 d | 16,50 | FILTEC 22x250 AC16,5 | 5,15 | 25,40 – 25,80 | 22,75 | 22,541 +0,355 | 25,248 | 23,624 +0,154 |
| M22 x2,50 | 1,0 d | 22,00 | FILTEC 22x250 AC22 | 7,10 | 25,40 – 25,80 | 22,75 | 22,541 +0,355 | 25,248 | 23,624 +0,154 |
| M22 x2,50 | 1,25 d | 27,50 | FILTEC 22x250 AC27,5 | 9,10 | 25,40 – 25,80 | 22,75 | 22,541 +0,355 | 25,248 | 23,624 +0,154 |
| M22 x2,50 | 1,5 d | 33,00 | FILTEC 22x250 AC33 | 11,25 | 25,40 – 25,80 | 22,75 | 22,541 +0,355 | 25,248 | 23,624 +0,154 |
| M22 x2,50 | 2,0 d | 44,00 | FILTEC 22x250 AC44 | 15,50 | 25,40 – 25,80 | 22,75 | 22,541 +0,355 | 25,248 | 23,624 +0,154 |
| M24 x1,50 | 0,5 d | 12,00 | FILTEC 24x150 AC12 | 6,35 | 27,00 – 27,50 | 24,50 | 24,325 +0,236 | 25,948 | 24,974 +0,135 |
| M24 x1,50 | 0,75 d | 18,00 | FILTEC 24x150 AC18 | 10,05 | 27,00 – 27,50 | 24,50 | 24,325 +0,236 | 25,948 | 24,974 +0,135 |
| M24 x1,50 | 1,0 d | 24,00 | FILTEC 24x150 AC24 | 13,65 | 27,00 – 27,50 | 24,50 | 24,325 +0,236 | 25,948 | 24,974 +0,135 |
| M24 x1,50 | 1,25 d | 30,00 | FILTEC 24x150 AC30 | 17,15 | 27,00 – 27,50 | 24,50 | 24,325 +0,236 | 25,948 | 24,974 +0,135 |
| M24 x1,50 | 1,5 d | 36,00 | FILTEC 24x150 AC36 | 20,95 | 27,00 – 27,50 | 24,50 | 24,325 +0,236 | 25,948 | 24,974 +0,135 |
| M24 x3,00 | 0,75 d | 18,00 | FILTEC 24x300 AC18 | 4,55 | 28,30 – 28,80 | 24,75 | 24,649 +0,400 | 27,897 | 25,948 +0,187 |
| M24 x3,00 | 1,0 d | 24,00 | FILTEC 24x300 AC24 | 6,25 | 28,30 – 28,80 | 24,75 | 24,649 +0,400 | 27,897 | 25,948 +0,187 |
| M24 x3,00 | 1,25 d | 30,00 | FILTEC 24x300 AC30 | 8,15 | 28,30 – 28,80 | 24,75 | 24,649 +0,400 | 27,897 | 25,948 +0,187 |
| M24 x3,00 | 1,5 d | 36,00 | FILTEC 24x300 AC36 | 10,10 | 28,30 – 28,80 | 24,75 | 24,649 +0,400 | 27,897 | 25,948 +0,187 |
| M24 x3,00 | 2,0 d | 48,00 | FILTEC 24x300 AC48 | 14,15 | 28,30 – 28,80 | 24,75 | 24,649 +0,400 | 27,897 | 25,948 +0,187 |
| M26 x1,50 | 0,5 d | 13,00 | FILTEC 26x150 AC13 | 6,80 | 29,50 – 30,00 | 26,50 | 26,325 +0,236 | 27,948 | 26,974 +0,135 |
| M26 x1,50 | 0,75 d | 19,50 | FILTEC 26x150 AC19,5 | 10,80 | 29,50 – 30,00 | 26,50 | 26,325 +0,236 | 27,948 | 26,974 +0,135 |
| M26 x1,50 | 1,0 d | 26,00 | FILTEC 26x150 AC26 | 14,70 | 29,50 – 30,00 | 26,50 | 26,325 +0,236 | 27,948 | 26,974 +0,135 |
| M26 x1,50 | 1,25 d | 32,50 | FILTEC 26x150 AC32,5 | 18,45 | 29,50 – 30,00 | 26,50 | 26,325 +0,236 | 27,948 | 26,974 +0,135 |
| M26 x1,50 | 1,5 d | 39,00 | FILTEC 26x150 AC39 | 22,70 | 29,50 – 30,00 | 26,50 | 26,325 +0,236 | 27,948 | 26,974 +0,135 |
| M27 x3,00 | 0,75 d | 20,25 | FILTEC 27x300 AC20,25 | 5,05 | 31,60 – 32,10 | 27,75 | 27,649 +0,400 | 30,897 | 28,948 +0,187 |
| M27 x3,00 | 1,0 d | 27,00 | FILTEC 27x300 AC27 | 7,20 | 31,60 – 32,10 | 27,75 | 27,649 +0,400 | 30,897 | 28,948 +0,187 |
| M27 x3,00 | 1,25 d | 33,75 | FILTEC 27x300 AC33,75 | 9,35 | 31,60 – 32,10 | 27,75 | 27,649 +0,400 | 30,897 | 28,948 +0,187 |
| M27 x3,00 | 1,5 d | 40,50 | FILTEC 27x300 AC40,5 | 11,60 | 31,60 – 32,10 | 27,75 | 27,649 +0,400 | 30,897 | 28,948 +0,187 |
| M27 x3,00 | 2,0 d | 54,00 | FILTEC 27x300 AC54 | 15,65 | 31,60 – 32,10 | 27,75 | 27,649 +0,400 | 30,897 | 28,948 +0,187 |
| M30 x3,50 | 0,75 d | 22,5 | FILTEC 30x350 AC22,5 | 4,90 | 34,90 – 35,40 | 31,00 | 30,757 +0,450 | 34,546 | 32,273 +0,199 |
| M30 x3,50 | 1,0 d | 30,00 | FILTEC 30x350 AC30 | 7,05 | 34,90 – 35,40 | 31,00 | 30,757 +0,450 | 34,546 | 32,273 +0,199 |
| M30 x3,50 | 1,25 d | 37,50 | FILTEC 30x350 AC37,50 | 9,05 | 34,90 – 35,40 | 31,00 | 30,757 +0,450 | 34,546 | 32,273 +0,199 |
| M30 x3,50 | 1,5 d | 45,00 | FILTEC 30x350 AC45 | 11,05 | 34,90 – 35,40 | 31,00 | 30,757 +0,450 | 34,546 | 32,273 +0,199 |
| M30 x3,50 | 2,0 d | 60,00 | FILTEC 30x350 AC60 | 15,00 | 34,90 – 35,40 | 31,00 | 30,757 +0,450 | 34,546 | 32,273 +0,199 |
W celu uzyskania dodatkowych informacji i wsparcia technicznego prosimy o kontakt z działem technicznym naszej firmy. ANSTEEL zastrzega sobie prawo do zmiany specyfikacji w każdej chwili. Podane informacje mają jedynie charakter orientacyjny i nie powinny być wykorzystywane w odniesieniu do konkretnych kryteriów projektowych bez konsultacji z naszymi inżynierami ds. technicznych.
