F204

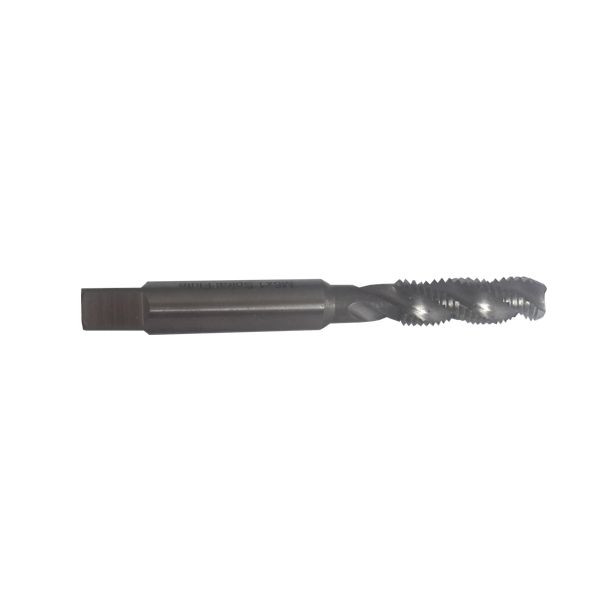

gwintowniki maszynowe spiralne
| Gwint i nominalny skok | A | B | C x C Wymiar kwadratowy | D - Długość gwintowana (mm) | E - Długość całkowita (mm) | Artykuł |
|---|---|---|---|---|---|---|
| M2 x 0,40 | 2,50 | 2,80 | 2,00 | 11 | 46 | F204 02 40 00 00 |
| M2,5 x 0,45 | 3,11 | 3,15 | 2,50 | 13 | 48 | F204 02 45 00 00 |
| M3 x 0,50 | 3,67 | 4,00 | 3,15 | 16 | 53 | F204 03 50 00 00 |
| M3,5 x 0,60 | 4,31 | 4,50 | 3,55 | 16 | 53 | F204 04 60 00 00 |
| M4 x 0,70 | 4,94 | 5,00 | 4,00 | 15 | 58 | F204 04 70 00 00 |
| M5 x 0,80 | 6,07 | 6,30 | 5,00 | 17 | 66 | F204 05 80 00 00 |
| M6 x 1,00 | 7,34 | 8,00 | 6,30 | 20 | 72 | F204 06 01 00 00 |
| M7 x 1,00 | 8,34 | 9,00 | 7,10 | 20 | 72 | F204 07 01 00 00 |
| M8 x 1,00 | 9,34 | 10,00 | 8,00 | 22 | 80 | F204 08 01 00 00 |
| M8 x 1,25 | 9,67 | 10,00 | 8,00 | 22 | 80 | F204 08 02 00 00 |
| M9 x 1,25 | 10,67 | 8,00 | 6,30 | 23 | 85 | F204 09 02 00 00 |
| M10 x 1,00 | 11,34 | 8,00 | 6,30 | 23 | 85 | F204 10 01 00 00 |
| M10 x 1,25 | 11,67 | 8,00 | 6,30 | 23 | 85 | F204 10 02 00 00 |
| M10 x 1,50 | 12,01 | 9,00 | 7,10 | 26 | 89 | F204 10 03 00 00 |
| M11 x 1,50 | 13,01 | 9,00 | 7,10 | 26 | 89 | F204 11 03 00 00 |
| M12 x 1,00 | 13,33 | 11,20 | 9,00 | 27 | 95 | F204 12 01 00 00 |
| M12 x 1,25 | 13,67 | 11,20 | 9,00 | 27 | 95 | F204 12 02 00 00 |
| M12 x 1,50 | 14,01 | 11,20 | 9,00 | 27 | 95 | F204 12 03 00 00 |
| M12 x 1,75 | 14,33 | 11,20 | 9,00 | 27 | 95 | F204 12 04 00 00 |
| M14 x 1,25 | 15,67 | 12,50 | 10,00 | 29 | 102 | F204 14 02 00 00 |
| M14 x 1,50 | 16,01 | 12,50 | 10,00 | 29 | 102 | F204 14 03 00 00 |
| M14 x 2,00 | 16,66 | 12,50 | 10,00 | 29 | 102 | F204 14 05 00 00 |
| M16 x 1,50 | 18,01 | 14,00 | 11,20 | 34 | 112 | F204 16 03 00 00 |
| M16 x 2,00 | 18,66 | 14,00 | 11,20 | 34 | 112 | F204 16 05 00 00 |
| M18 x 1,50 | 20,01 | 14,00 | 11,20 | 34 | 112 | F204 18 03 00 00 |
| M18 x 2,00 | 20,66 | 14,00 | 11,20 | 34 | 118 | F204 18 05 00 00 |
| M18 x 2,50 | 21,31 | 16,00 | 12,50 | 35 | 118 | F204 18 06 00 00 |
| M20 x 1,50 | 22,01 | 16,00 | 12,50 | 35 | 118 | F204 20 03 00 00 |
| M20 x 2,00 | 22,66 | 16,00 | 12,50 | 35 | 118 | F204 20 05 00 00 |
| M20 x 2,50 | 23,31 | 16,00 | 12,50 | 35 | 130 | F204 20 06 00 00 |
| M22 x 1,50 | 24,01 | 18,00 | 14,00 | 42 | 130 | F204 22 03 00 00 |
| M22 x 2,00 | 24,66 | 18,00 | 14,00 | 42 | 130 | F204 22 05 00 00 |
| M22 x 2,50 | 25,31 | 18,00 | 14,00 | 42 | 130 | F204 22 06 00 00 |
| M24 x 1,50 | 26,01 | 18,00 | 14,00 | 42 | 130 | F204 24 03 00 00 |
| M24 x 2,00 | 26,66 | 20,00 | 16,00 | 34 | 127 | F204 24 05 00 00 |
| M24 x 3,00 | 27,97 | 20,00 | 16,00 | 42 | 135 | F204 24 07 00 00 |
| M26 x 1,50 | 28,01 | 20,00 | 16,00 | 34 | 127 | F204 26 03 00 00 |
| M27 x 1,50 | 29,01 | 20,00 | 16,00 | 34 | 127 | F204 27 03 00 00 |
| M27 x 2,00 | 29,66 | 20,00 | 16,00 | 34 | 127 | F204 27 05 00 00 |
| M27 x 3,00 | 30,97 | 22,40 | 18,00 | 48 | 151 | F204 27 07 00 00 |
| M28 x 1,50 | 30,01 | 20,00 | 16,00 | 34 | 127 | F204 28 03 00 00 |
| M30 x 1,50 | 32,01 | 22,40 | 18,00 | 34 | 137 | F204 30 03 00 00 |
| M30 x 2,00 | 32,66 | 22,40 | 18,00 | 34 | 137 | F204 30 05 00 00 |
| M30 x 3,50 | 34,63 | 25,00 | 20,00 | 54 | 162 | F204 30 08 00 00 |
| M32 x 1,50 | 34,01 | 25,00 | 20,00 | 36 | 144 | F204 32 03 00 00 |
| M33 x 2,00 | 35,66 | 25,00 | 20,00 | 36 | 144 | F204 33 05 00 00 |
| M33 x 3,00 | 36,97 | 25,00 | 20,00 | 54 | 162 | F204 33 07 00 00 |
| M33 x 3,50 | 37,63 | 28,00 | 22,40 | 57 | 170 | F204 33 08 00 00 |
| M36 x 1,50 | 38,01 | 28,00 | 22,40 | 36 | 149 | F204 36 03 00 00 |
| M36 x 2,00 | 38,66 | 28,00 | 22,40 | 36 | 149 | F204 36 05 00 00 |
| M36 x 3,00 | 39,97 | 28,00 | 22,40 | 57 | 170 | F204 36 07 00 00 |
| M36 x 4,00 | 44,28 | 28,00 | 22,40 | 57 | 170 | F204 36 09 00 00 |
| M39 x 3,00 | 42,97 | 31,50 | 25,00 | 63 | 187 | F204 39 07 00 00 |
| M39 x 4,00 | 44,28 | 31,50 | 25,00 | 63 | 187 | F204 39 09 00 00 |
| M42 x 3,00 | 45,97 | 31,50 | 25,00 | 63 | 187 | F204 42 07 00 00 |
| M42 x 4,50 | 47,94 | 31,50 | 25,00 | 63 | 187 | F204 42 10 00 00 |
